SKU:

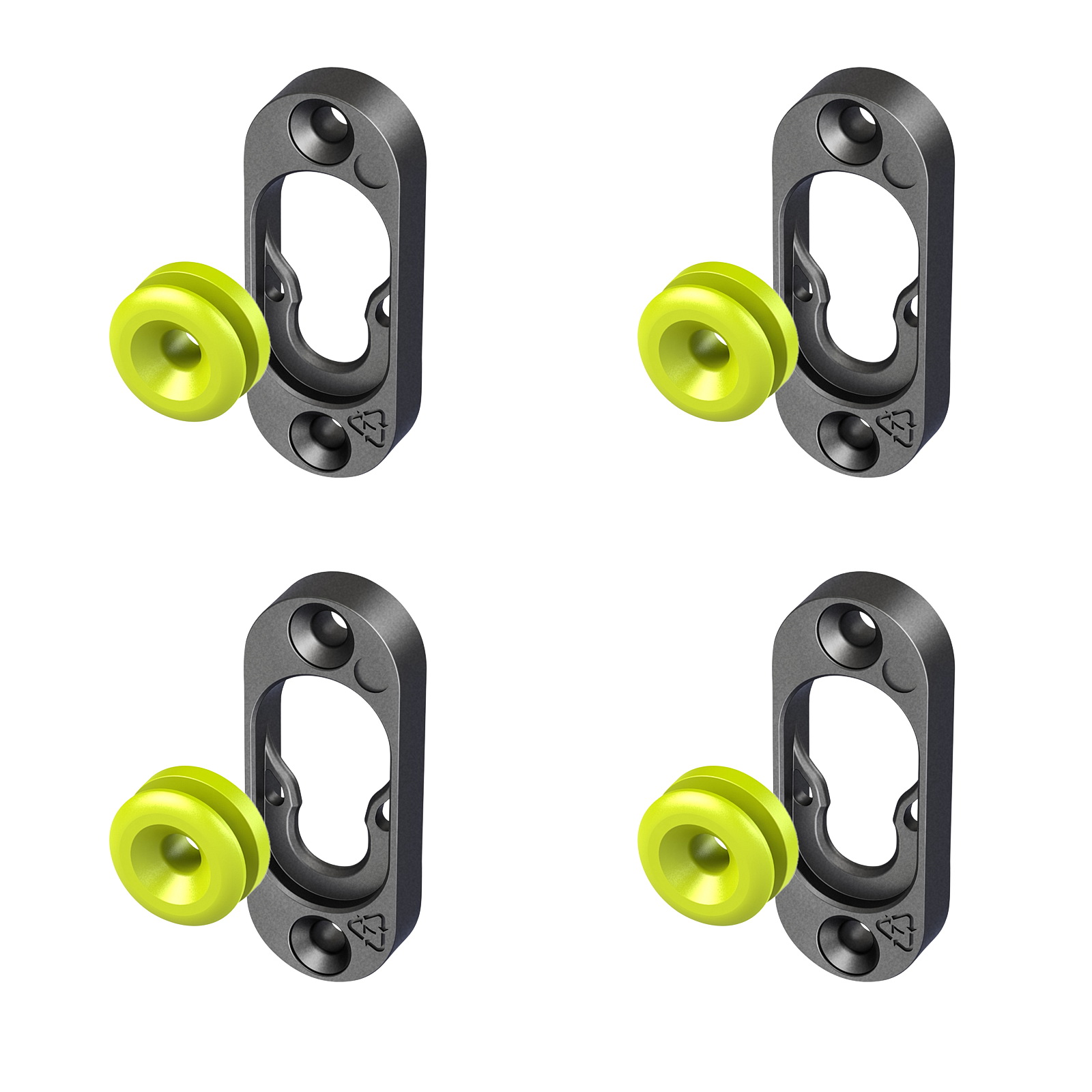

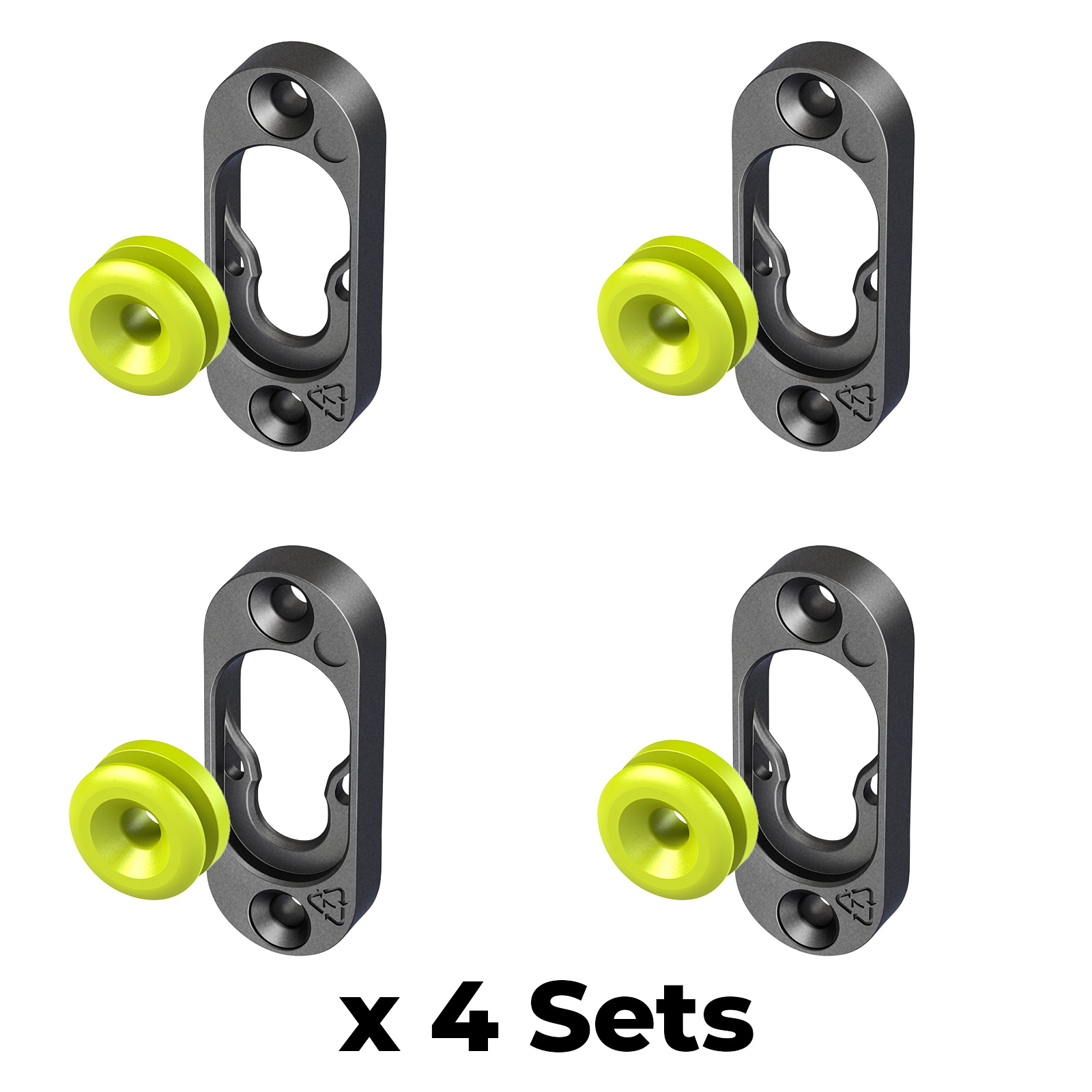

171-018-11-K4 Button Fix Type 1 Flush Bracket Marker Guide Kit Connecting 90º Degree Panels x4
Images:
$8.91
Product:
Color:
Black
Material :
Glass Filled Nylon PA6
Product Type:
Type-1 Flush
Distance From Wall:
1/2''
Height In:
1-13/16''
Screw Size for Installation:
#8
Installation:
The Button-fix concept is simple: durable Fixes are attached to the back of one panel and the mating Buttons are attached to the other. Bring the panels together and slide until the Button-fixes ‘click’.
Width IN:
17/25''
Anchor for Concrete:
ANC2
Anchor for Dry Wall:
ANC6, ANC6Z
Quantity Per Set:
4
Installation Hardware:
#8 Screw & Anchor
Weight:
0.08 lb
Description:

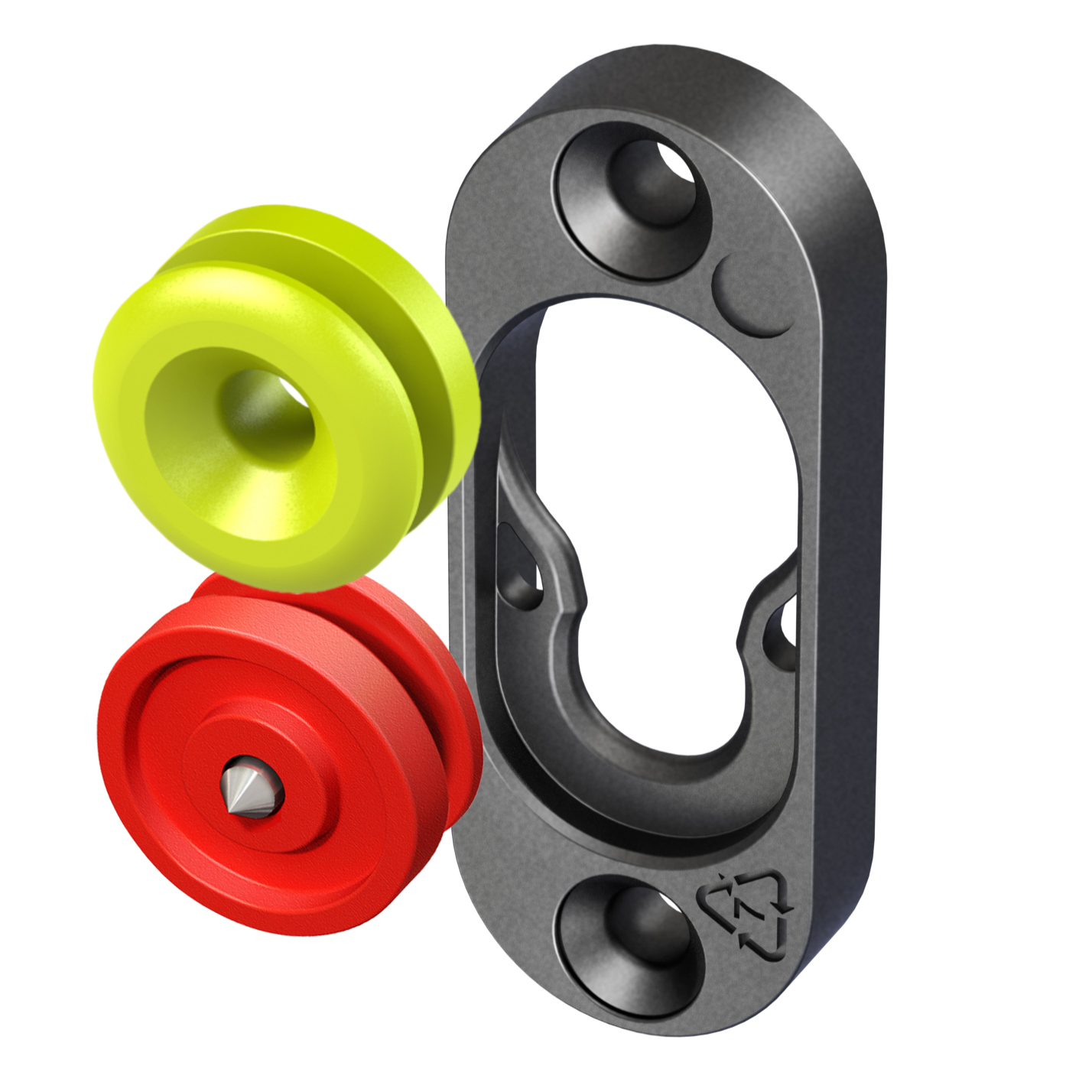

Button Fix Type 1 Flush Bracket Marker Guide Kit Connecting 90º Degree Panels QUALITY FOR ANY QUANTITY BOUGHT OVER 100 YOU WILL RECEIVE 1 FREE MARKER TOOL Product details: Connects panels at 90º with a simple push/pull fit ideal for applications where the emphasis is more on ease of fit and less on strength. Does not require a 15 mm drop down engagement. The choice of button is determined by the type of screw and thickness of panel being used. Material - Nylon fix and glass filled button Application - For 90º panels Installation - For screw fixing Supplied with Pack Size 1 - 1x Type 1 flush Fix, for flush fixing parallel panels, 1x Button for countersunk wood screw
Drawing:
Button-fix Type 1 Flush (01-20) US dimensions.jpg
Video:
https://www.youtube.com/embed/yaGIqlvyFag?si=FSWNACXjzk8JCDBx
Instruction Guide:
Mbs standoffs Button-fix_Type_1_Flush_(01-20)_ENG.pdf
Best Seller:
Position:
4
Screw Type:
Wood Screws
In PopUp:
Patented:
Apply Handling and Packing Fee:
Catalog Page:
136
