Suspended Cable System Kit (2 full set) Aluminum Clear Anodized finish - 1/16'' Diameter Cable

SKU:
SUSKIT2A

Suspended Cable System Kit (2 full set) Aluminum Clear Anodized finish - 1/16'' Diameter Cable

Images:
$17.51
Product:

Finish:
Clear Anodized
Inside/Outside:
Inside Use Only
Material :
Aluminum
Diameter:
1/2''
Distance From Wall:
4/5''
Cable Diameter:
1/16''
Length:
36''
Washer:
Not Included
Rated Strength:
55 lbs (25 Kg) per Steel Cable (When Properly Installed)
Application:
Ceiling Suspended

Maximum Thick. Material:
1/4''
Duty:
Light Duty

Screw Size for Installation:
#6
Installation:

The installation process is very easy!
First, mark where you will be hanging your ceiling mounts
Then, drill any necessary holes and install your anchors.
Next, loosen the set screw and remove the ceiling support holder.
Slide a screw through the ceiling support holder and screw it securely into the anchor.
Before screwing the Ceiling Mounted Material Holder to the threaded ceiling support, slide your cable all the way through the top of the Material Holder.
Now place the Material Holder onto the ceiling support holder and tighten the set screw.
Cut the cable at the desired length, thread it into the top of your hanging fork, and tighten the set screw.
All that's left is to hang your material, tighten the set screw, and enjoy your beautiful display!

Anchor for Concrete:
ANC1
Anchor for Dry Wall:
ANC5, ANC5Z

Installation Hardware:
#6 Screw & Anchor
Tools Required:
M4 Hex key, Screwdriver
Weight:
0.17 lb
Short Description:
Suspended Cable System Kit (2 full set)
Description:

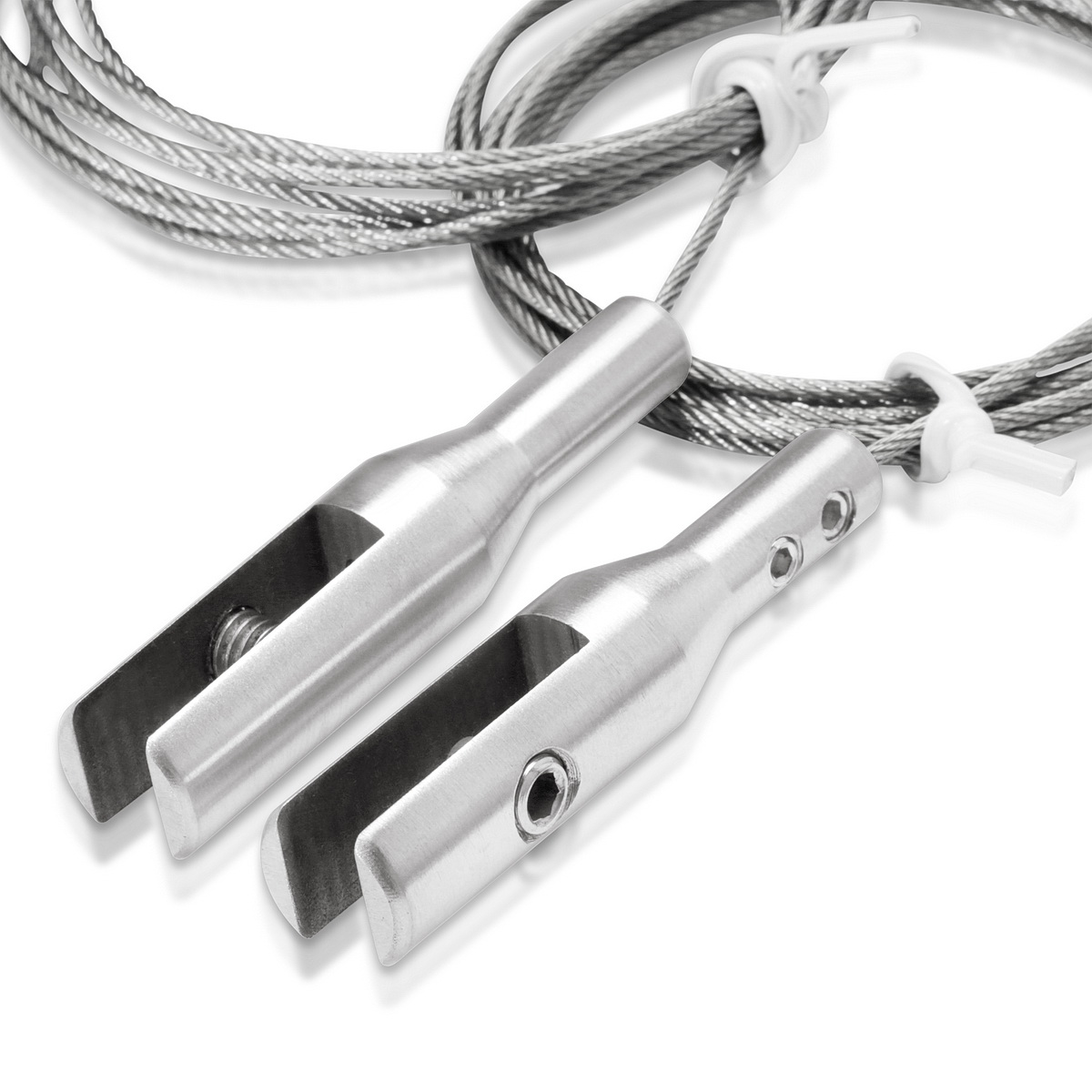

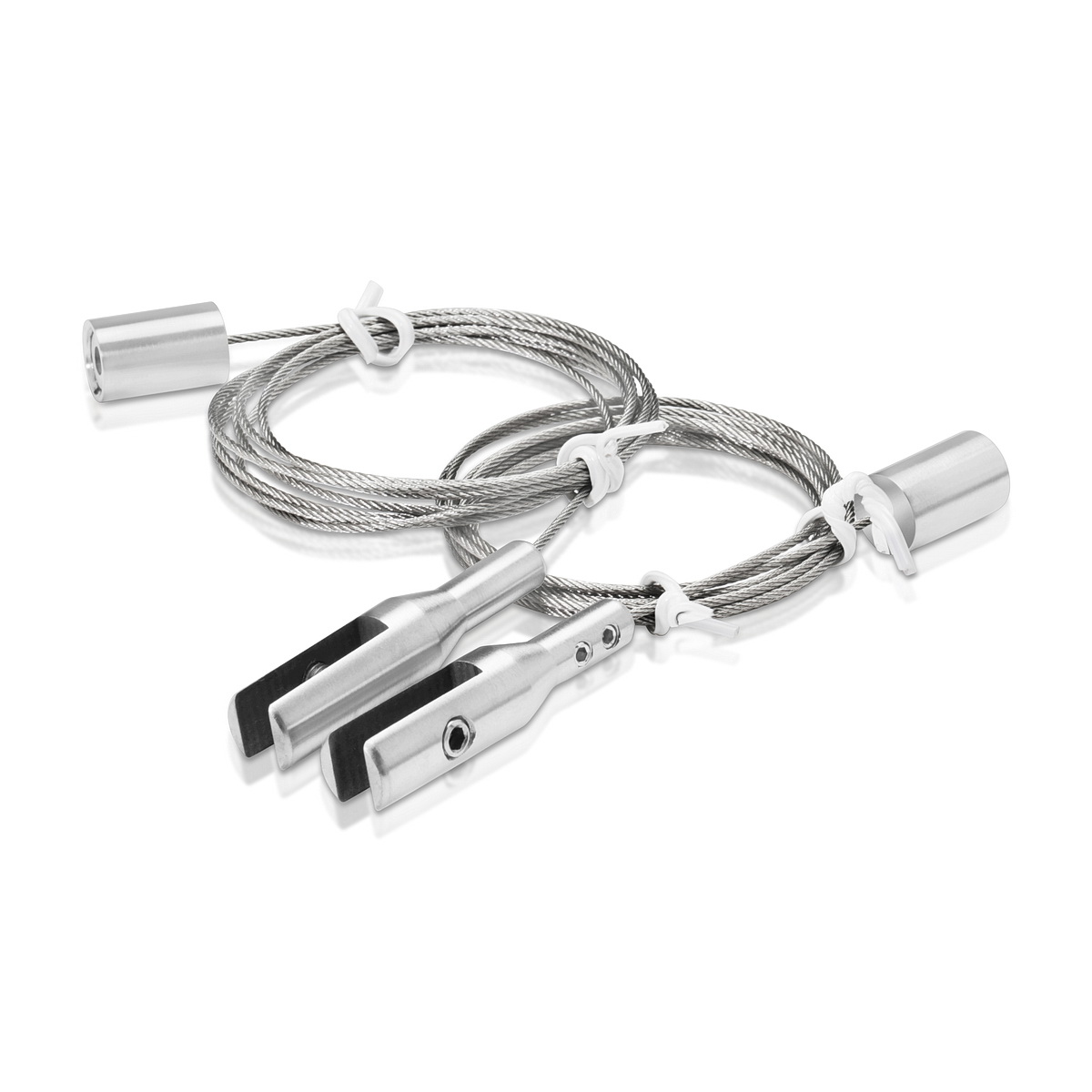

Our Suspended Cable System Kit includes 2 full suspension sets with2 Ceiling mounts, 2 Cables, and 2 Hanging Forks. Adjustable makes it easy to get your sign perfectly leveled. The elegant finishes that we carry will give your display a unique look that will make it stand out like no other. Thanks to the easy installation process you can have an exhibit displayed anywhere you would like in no time! If you look below you will notice technical descriptions about this particular package.
Hangs Material:
Suspended
Grip Style:
Top Side Clamp
Drawing:
SUSKIT2.pdf
Video:
https://www.youtube.com/embed/xJS4koZm8dk?si=LWSytLPtCYQYg26C
Instruction Guide:
SUSKIT1_Instruction_Guide.pdf
Best Seller:
In PopUp:
Patented:
Apply Handling and Packing Fee:
Minimum Thick. Material:
0''
Catalog Page:
168
