SKU:

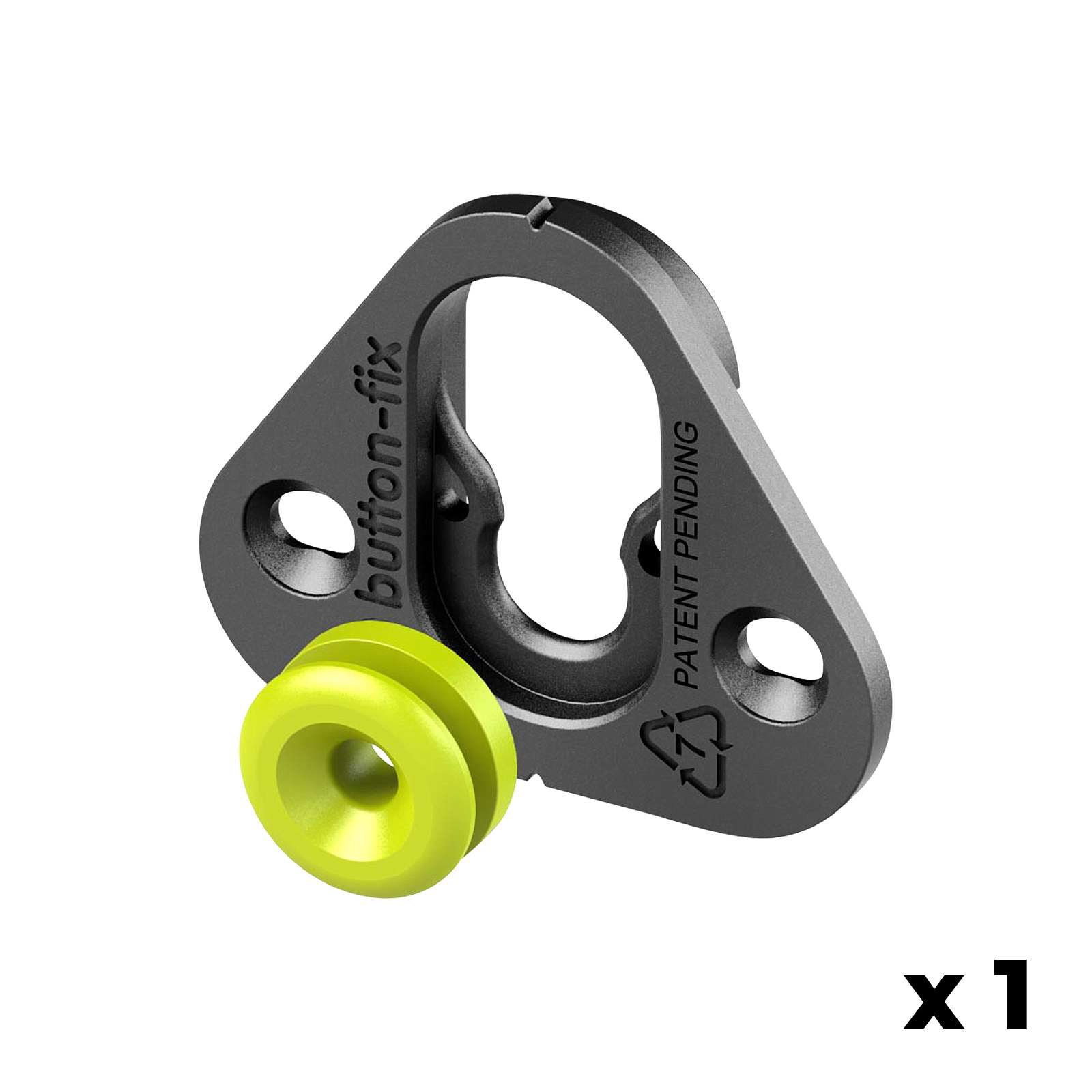

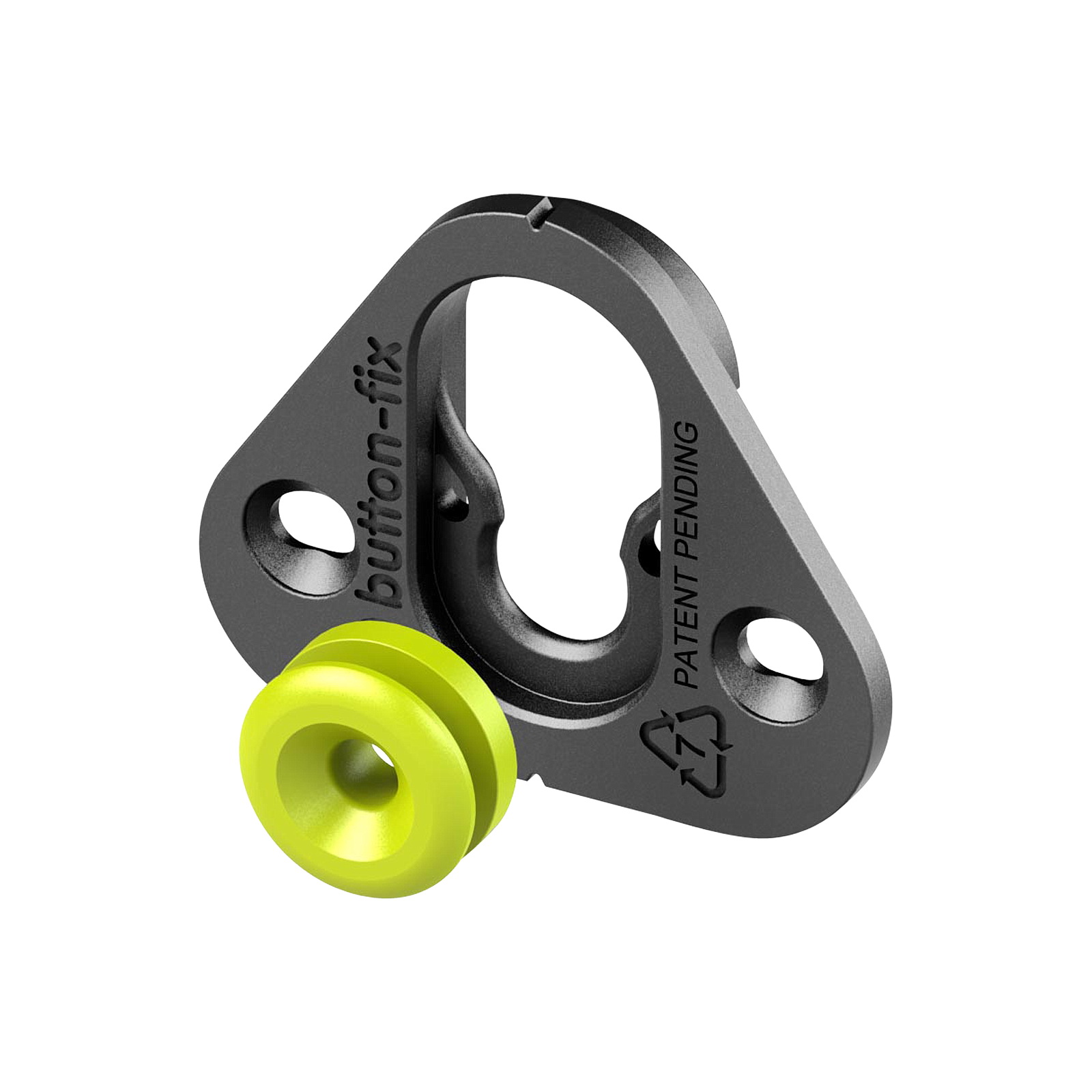

171-001-11 Type 1 Fix + Button for CSK wood screw
Images:
$2.09
Product:
Material :
Glass Filled Nylon PA6
Product Type:
Type-1
Distance From Wall:
1/2''
Height In:
1''
Screw Size for Installation:
#8
Installation:

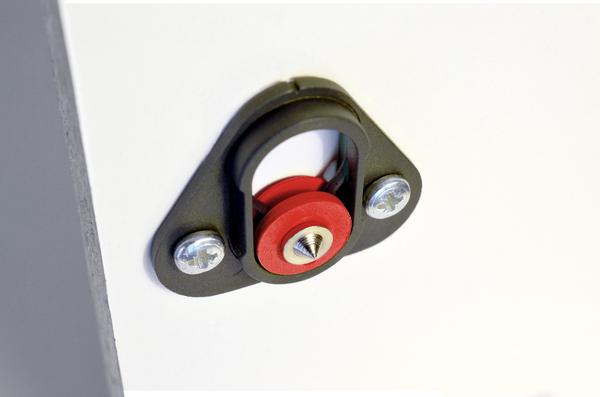

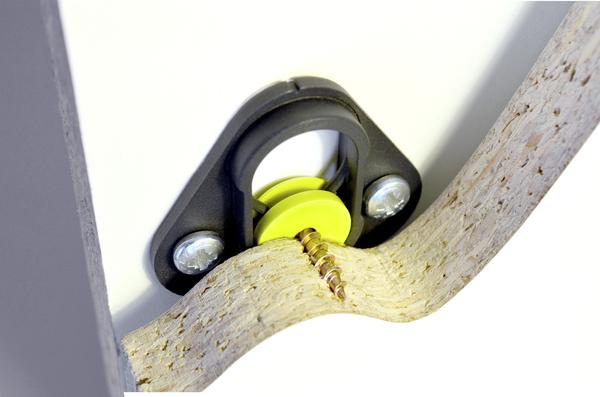

The Button-fix concept is simple: durable Fixes are attached to the back of one panel and the mating Buttons are attached to the other. Bring the panels together and slide until the Button-fixes ‘click’.
Width IN:
2''
Anchor for Concrete:
ANC2
Anchor for Dry Wall:
ANC6, ANC6Z

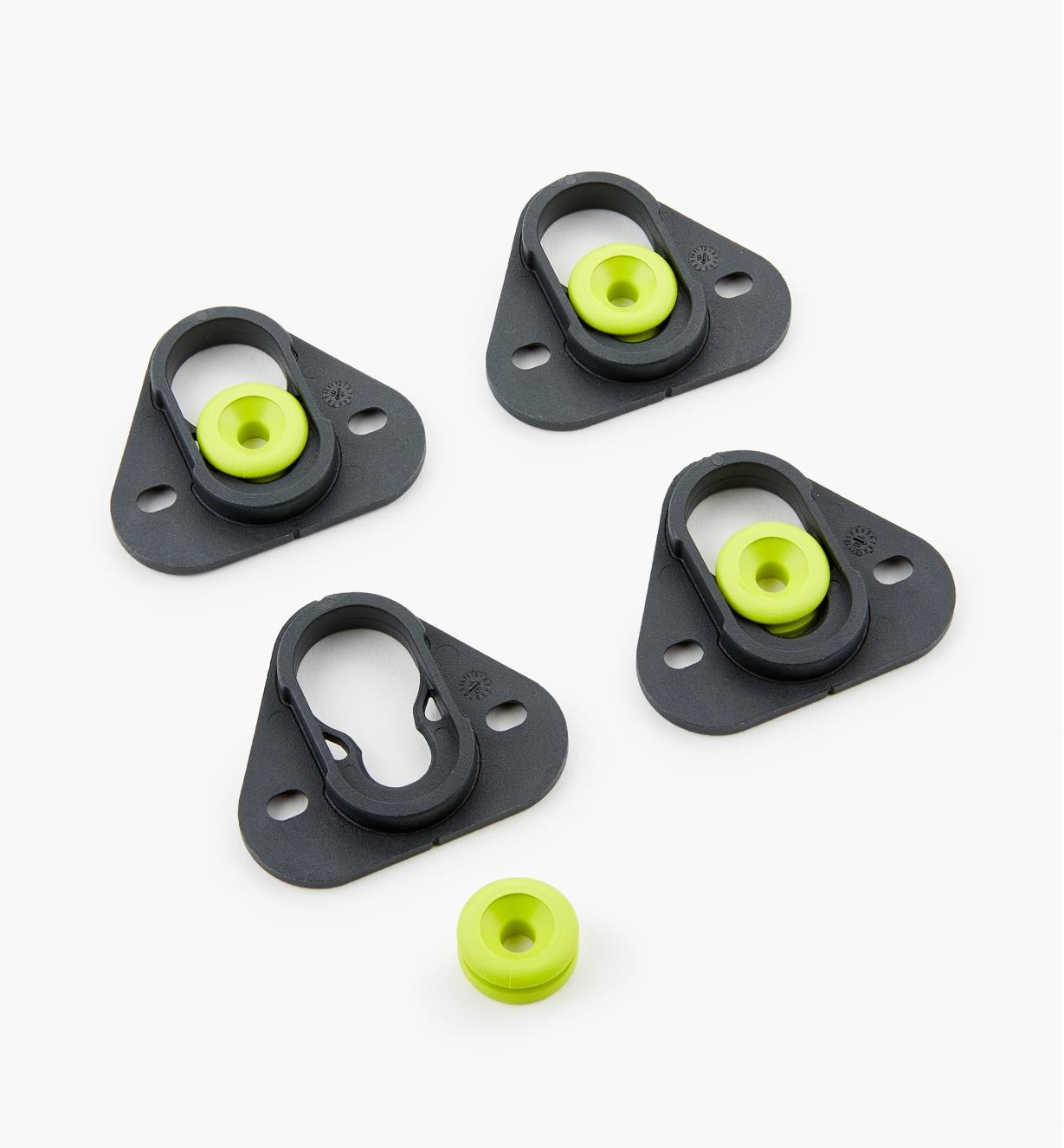

Quantity Per Set:
1
Installation Hardware:
#8 Screw & Anchor
Weight:
0.03 lb
Short Description:
"Connects panels at 90 degrees and engages with a straight push
Ideal for panels with no clearance above or at the side and applications where the emphasis is on ease of access
Panel Fixing Made Easy
Button Fix Type 1 Bracket Marker Guide Kit Connecting Parallel Panels Set
Different pack sizes available"
Description:
Button-Fix Type 1 - Connects parallel panels where the emphasis is on strength. Highly versatile, it can be surface-mounted or semi-rebated into the panel, orientated for vertical or sideways assembly.
Drawing:
Button-fix Type 1 (01-20) US dimensions.jpg
Video:
https://www.youtube.com/embed/Wv7uh1U4qh4?si=JJJ8d3dBKWP0Zlk2
Instruction Guide:
Instructions_Button-fix_Type_1_US.pdf
Best Seller:
Position:
2
Screw Type:
Wood Screws
In PopUp:
Patented:
Apply Handling and Packing Fee:
Catalog Page:
133
