SKU:

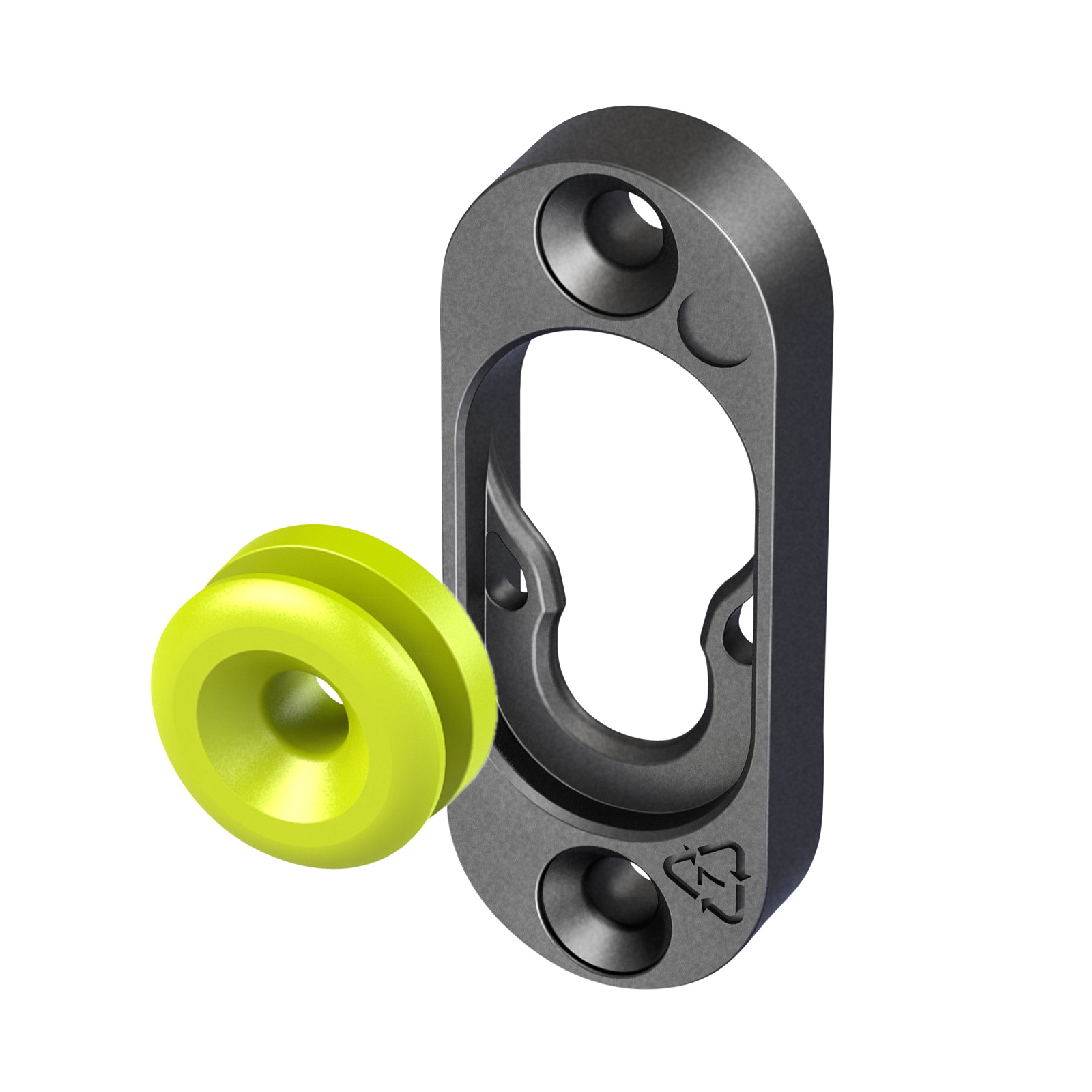

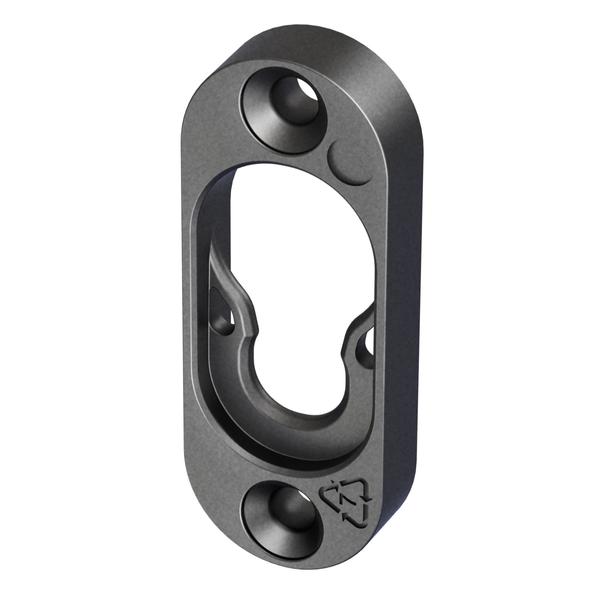

171-018-11 Type 1 Flush Fix + Button for CSK wood screw
Images:
$2.09
Product:
Color:
Black
Material :
Glass Filled Nylon PA6
Product Type:
Type-1 Flush
Distance From Wall:
1/2''
Height In:
1-13/16''
Screw Size for Installation:
#8
Installation:
The Button-fix concept is simple: durable Fixes are attached to the back of one panel and the mating Buttons are attached to the other. Bring the panels together and slide until the Button-fixes ‘click’.
Width IN:
17/25''
Anchor for Concrete:
ANC2
Anchor for Dry Wall:
ANC6, ANC6Z

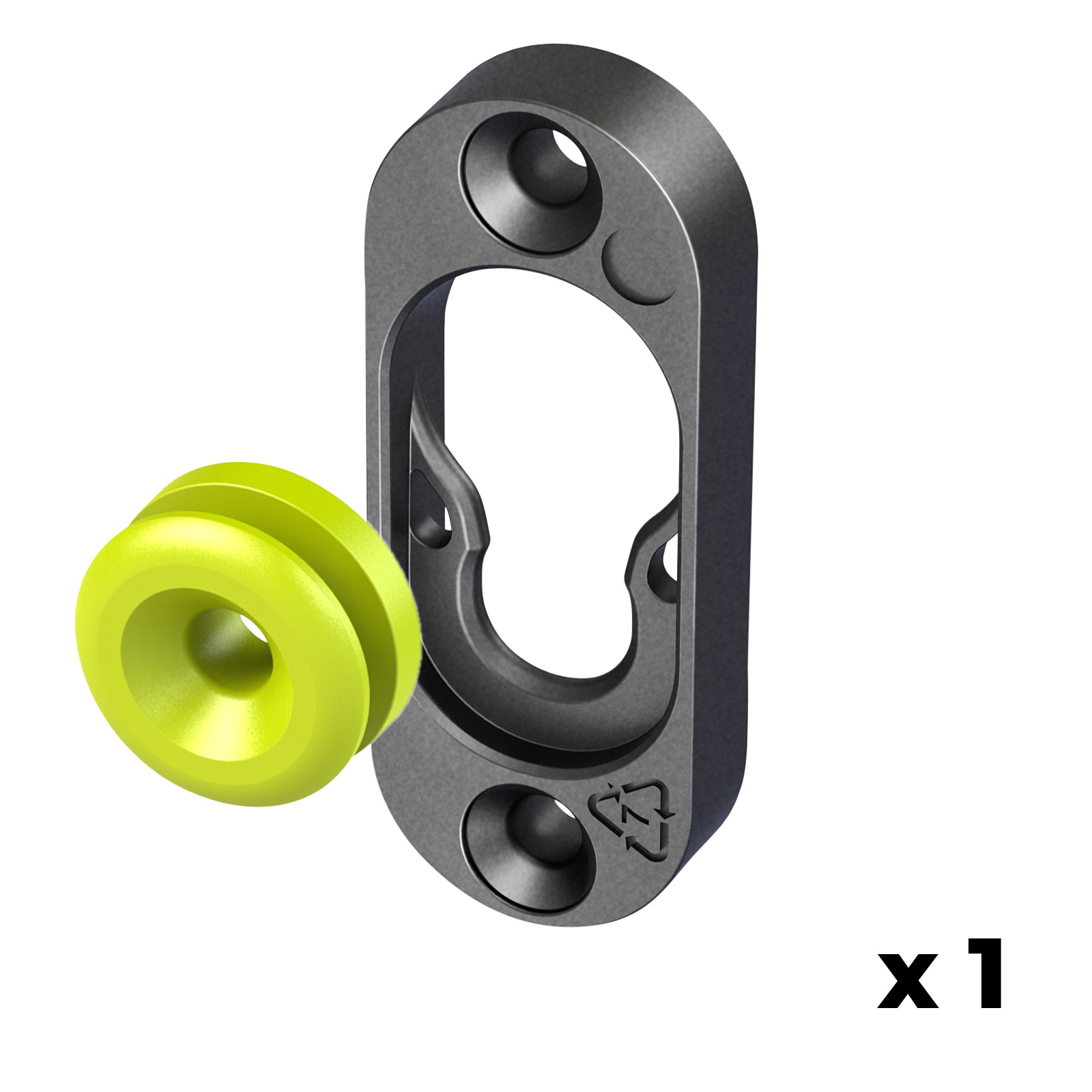

Quantity Per Set:
1
Installation Hardware:
#8 Screw & Anchor
Weight:
0.03 lb
Description:

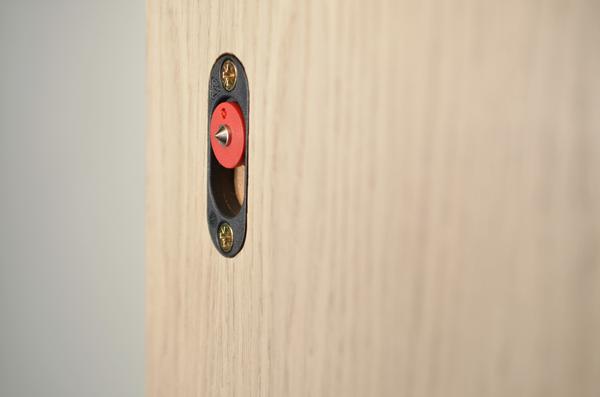

Button-Fix Type 1 Flush. For applications where panel-to-panel contact is required. It fits a simple oval rebate and can be rebated into the edge of a panel of at least 28mm thick or the face of a panel of at least 18mm thick.
Drawing:
Button-fix Type 1 Flush (01-20) US dimensions.jpg
Video:
https://www.youtube.com/embed/yaGIqlvyFag?si=FSWNACXjzk8JCDBx
Instruction Guide:
Mbs standoffs Button-fix_Type_1_Flush_(01-20)_ENG.pdf
Best Seller:
Position:
2
Screw Type:
Wood Screws
In PopUp:
Patented:
Apply Handling and Packing Fee:
Catalog Page:
133
